HON MOVE®
Height adjustable frames
SIMPLE
- SIMPLE 1 2 - SEGMENT, CRANK
- SIMPLE 1 2 - SEGMENT
- SIMPLE 1 3 - SEGMENT
- SIMPLE 2 2 - SEGMENT
- SIMPLE 2 3 - SEGMENT

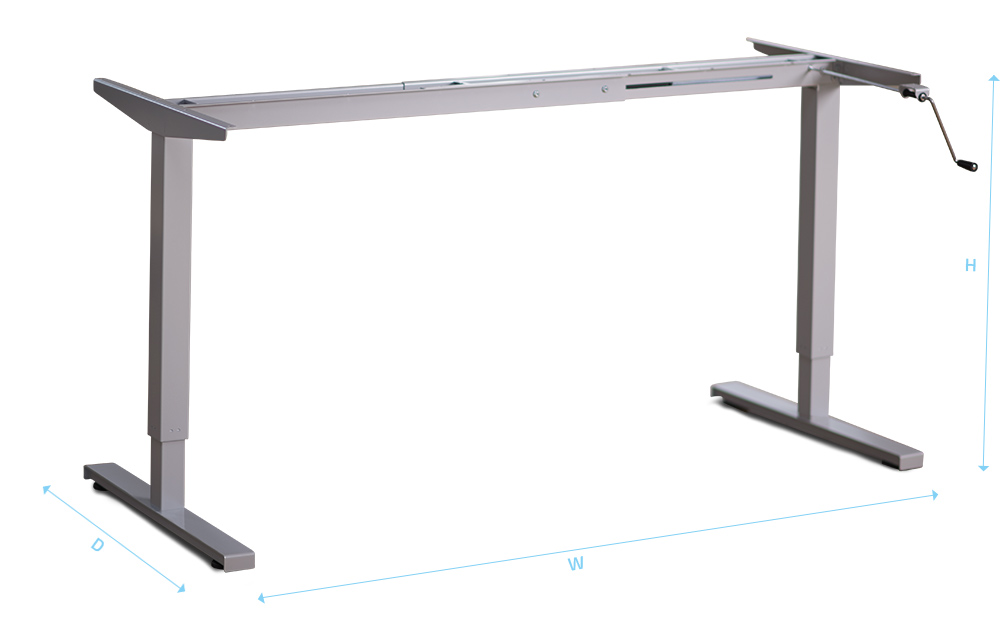

SIMPLE 1 2 - segment, hand crank
- Adjustable width W (without desktop): 1150 – 1750 mm
- Adjustable height H (without desktop): 690 – 1190 mm
- Depth D (without desktop): 675 mm
- Profile tube: 60 x 60 / 50 x 50 mm
- Maximum load capacity (desktop included): 80 kg
- Lifting time: 5 mm / 1 rev
- Warranty: 3 years

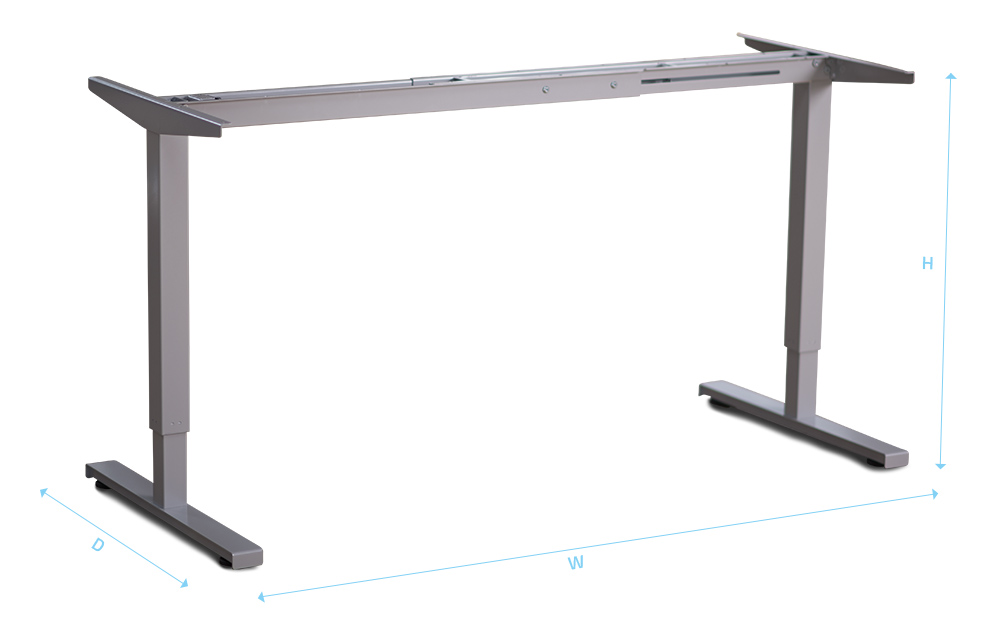

SIMPLE 1 2 - segment, 1 - motor
- Adjustable width W (without desktop): 1150 – 1750 mm
- Adjustable height H (without desktop): 680 – 1180 mm
- Depth D (without desktop): 675 mm
- Profile tube: 60 x 60 / 50 x 50 mm
- Maximum load capacity (desktop included): 80 kg
- Time load capacity: 10 %, max. 2 min. / 18 min.
- Lifting time: 30 mm / s
- Warranty: 3 years

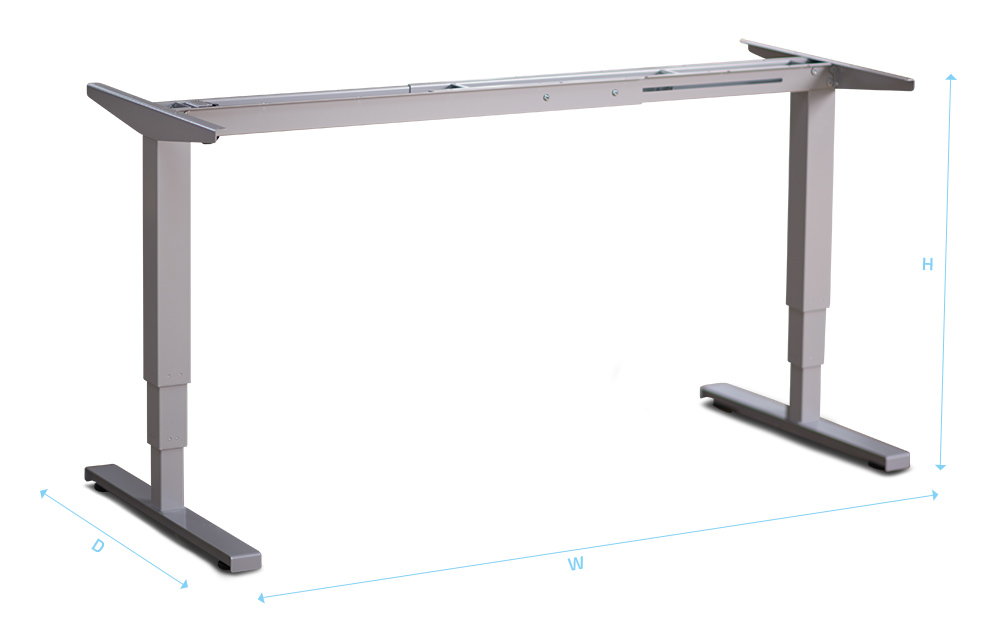

SIMPLE 1 3 - segment, 1 - motor
- Adjustable width W (without desktop): 1150 – 1750 mm
- Adjustable height H (without desktop): 580 – 1275 mm
- Depth D (without desktop): 675 mm
- Profile tube: 70×70 / 60×60 / 50×50 mm
- Maximum load capacity (desktop included): 80 kg
- Time load capacity: 10 %, max. 2 min. / 18 min.
- Lifting time: 30 mm / s
- Warranty: 3 years
SIMPLE 2 2 - segment, 1 - motor
- Adjustable width W (without desktop): 1150 – 1750 mm
- Adjustable height H (without desktop): 680 – 1180 mm
- Depth D (without desktop): 675 mm
- Profile tube: 70 x 70 / 60 x 60 mm
- Maximum load capacity (desktop included): 80 kg
- Time load capacity: 10 %, max. 2 min. / 18 min.
- Lifting time: 30 mm / s
- Warranty: 3 years
SIMPLE 2 3 - segment, 1 - motor
- Adjustable width W (without desktop): 1150 – 1750 mm
- Adjustable height H (without desktop): 580 – 1275 mm
- Depth D (without desktop): 675 mm
- Profile tube: 80 x 80 / 70 x 70 / 60 x 60 mm
- Maximum load capacity (desktop included): 80 kg
- Time load capacity: 10 %, max. 2 min. / 18 min.
- Lifting time: 30 mm / s
- Warranty: 3 years
