HON MOVE®
Height adjustable frames
VERTEX ERGO
- VERTEX ERGO 2 - SEGMENT
- VERTEX ERGO 3 - SEGMENT
- VERTEX T ERGO 2 - SEGMENT
- VERTEX T ERGO 3 - SEGMENT

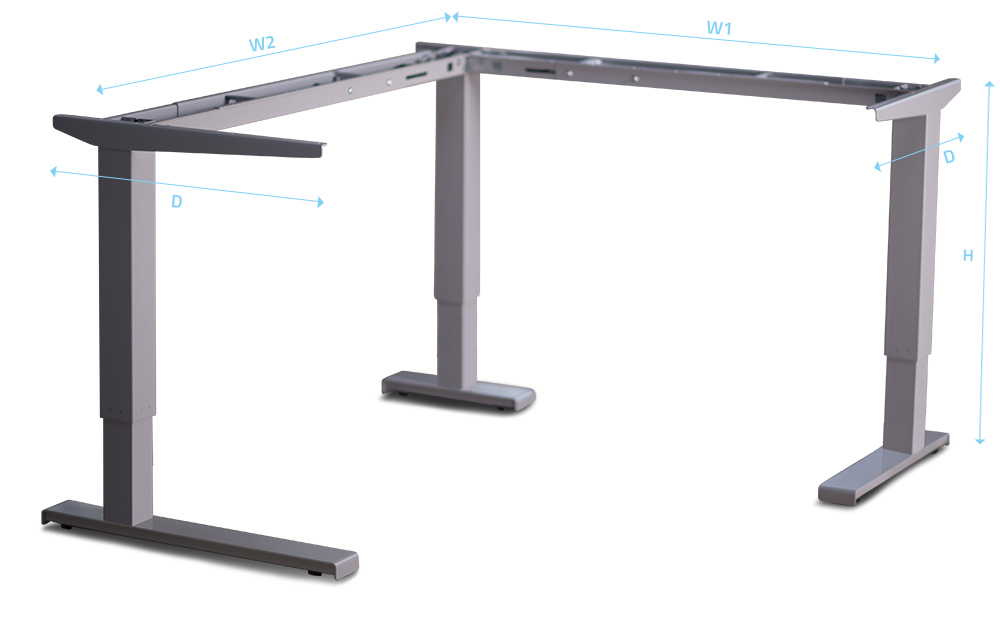

VERTEX ERGO 2 - segment, multimotor
- Adjustable width W1 (with desktop): 1500 – 2000 mm
- Adjustable width W2 (with desktop): 1200 – 1600 mm
- Depth D (with desktop): 600 – 800 mm
- Adjustable height H (without desktop): 680 – 1180 mm
- Frame only C-design
- Profile tube: 70 x 70 / 60 x 60 mm
- Maximum load capacity (desktop included): 120 kg
- Time load capacity: 10 %, max. 2 min. / 18 min.
- Lifting time: 35 mm / s
- Warranty: 5 years

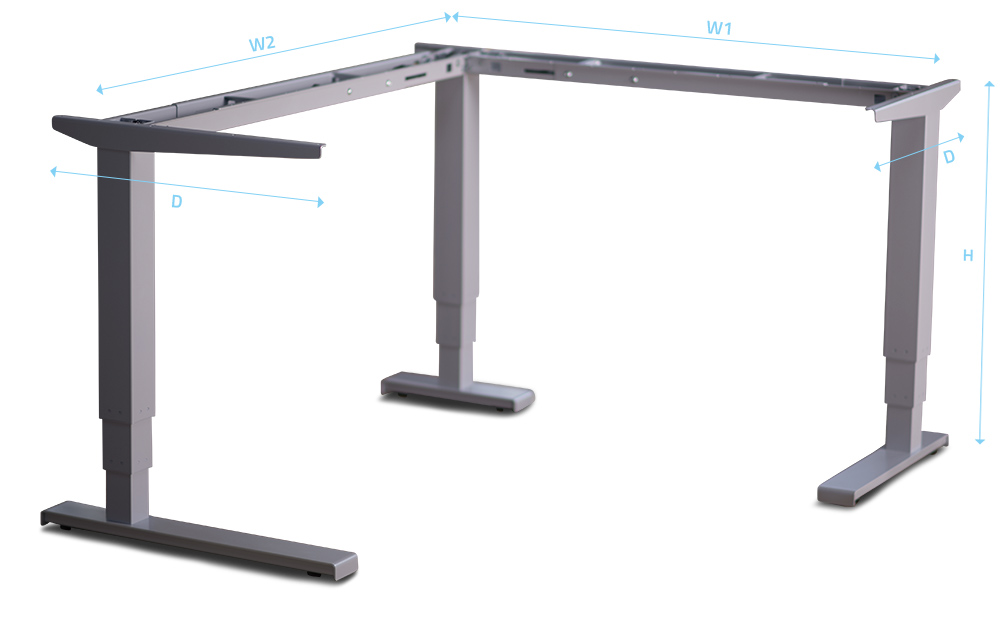

VERTEX ERGO 3 - segment, multimotor
- Adjustable width W1 (with desktop): 1500 – 2000 mm
- Adjustable width W2 (with desktop): 1200 – 1600 mm
- Depth D (with desktop): 600 – 800 mm
- Adjustable height H (without desktop): 620 – 1280 mm
- Frame only C-design
- Profile tube: 80 x 80 / 70 x 70 / 60 x 60 mm
- Maximum load capacity (desktop included): 120 kg
- Time load capacity: 10 %, max. 2 min. / 18 min.
- Lifting time: 35 mm / s
- Warranty: 5 years

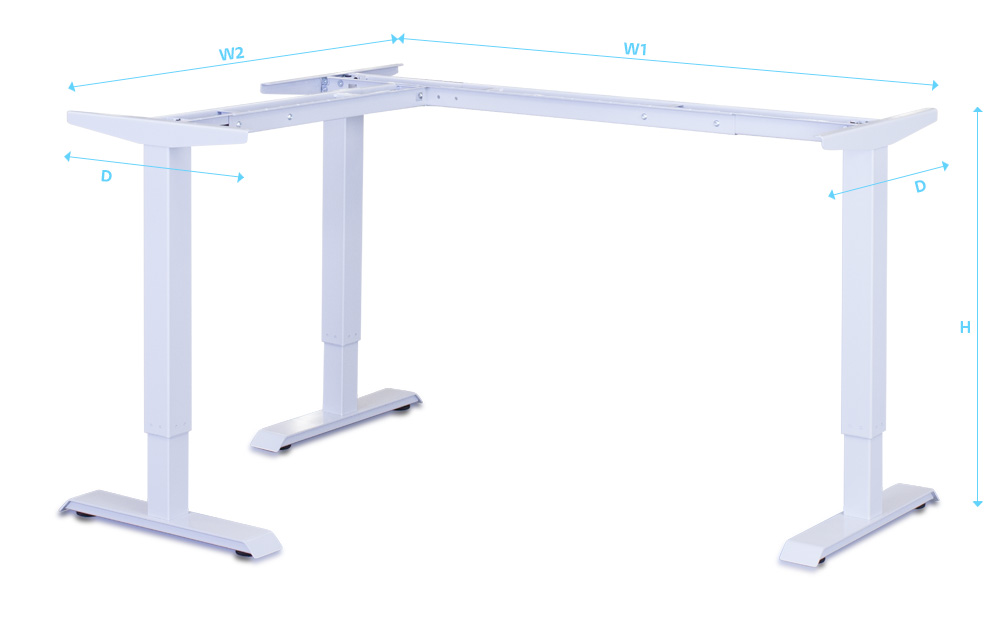

VERTEX T ERGO 2 - segment, multimotor
- Adjustable width W1 (with desktop): 1500 – 2000 mm
- Adjustable width W2 (with desktop): 1200 – 1600 mm
- Depth D (with desktop): 600 – 800 mm
- Adjustable height H (without desktop): 680 – 1180 mm
- Profile tube: 70 x 70 / 60 x 60 mm
- Maximum load capacity (desktop included): 120 kg
- Time load capacity: 10 %, max. 2 min. / 18 min.
- Lifting time: 35 mm / s
- Warranty: 5 years

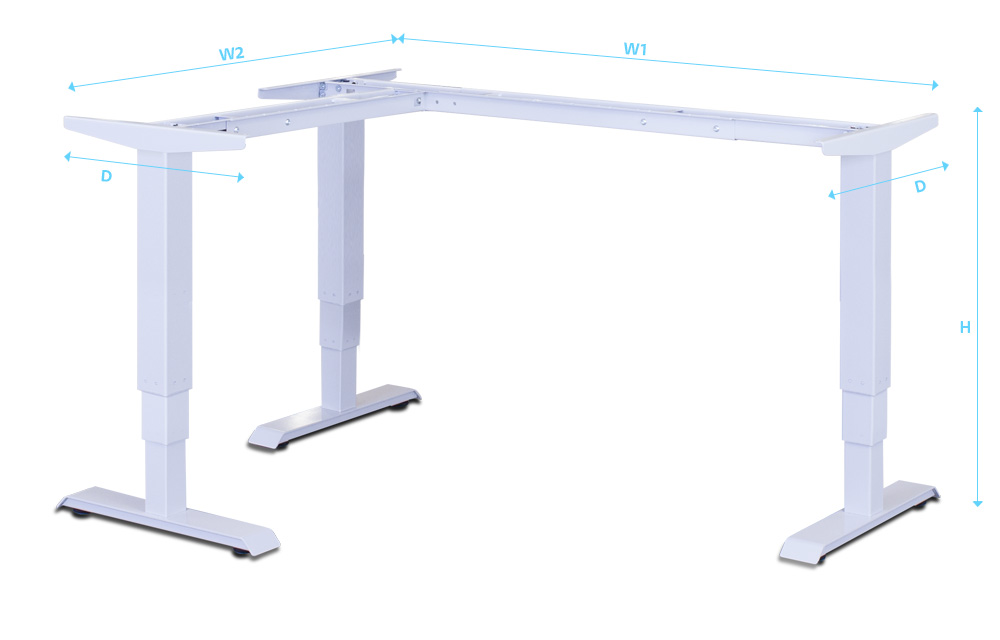

VERTEX T ERGO 3 - segment, multimotor
- Adjustable width W1 (with desktop): 1500 – 2000 mm
- Adjustable width W2 (with desktop): 1200 – 1600 mm
- Depth D (with desktop): 600 – 800 mm
- Adjustable height H (without desktop): 620 – 1280 mm
- Profile tube: 80 x 80 / 70 x 70 / 60 x 60 mm
- Maximum load capacity (desktop included): 120 kg
- Time load capacity: 10 %, max. 2 min. / 18 min.
- Lifting time: 35 mm / s
- Warranty: 5 years
